DOUBLE PIVOT ISO CLAMP UNION - FKM GASKET - STAINLESS STEEL 316L JOINT FKM Inox 316L (Model : 63479)

63479 DOUBLE PIVOT ISO CLAMP UNION - FKM GASKET - STAINLESS STEEL 316L JOINT FKM Inox 316L

Photos

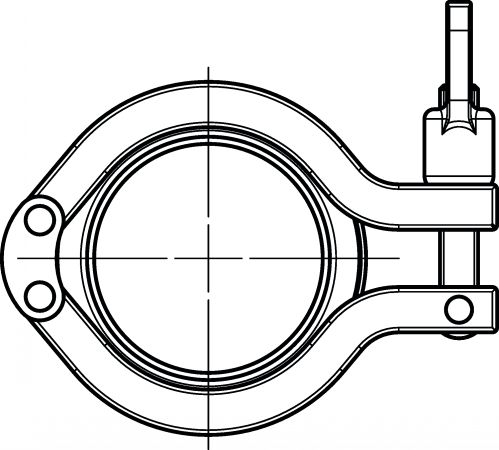

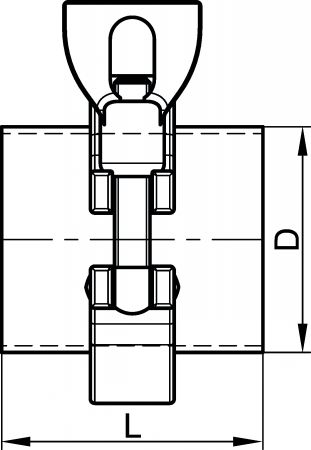

Dessins techniques

Information

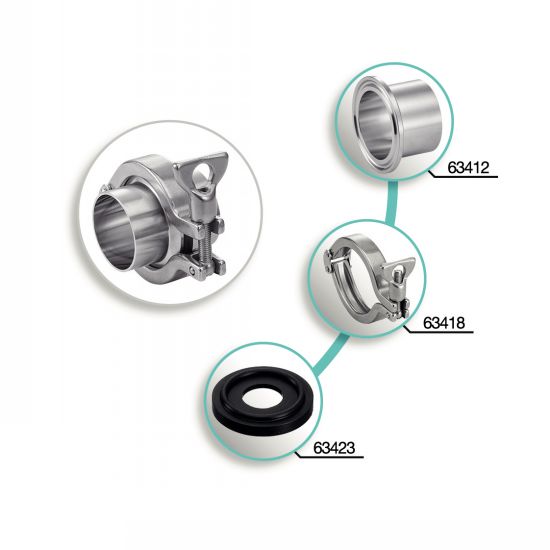

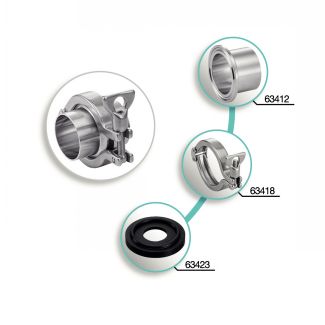

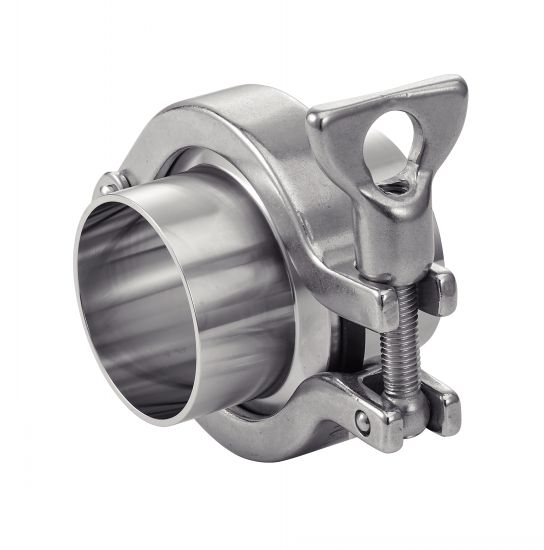

Raccord clamp ISO complet collier double articulation - Joint FKM - Inox 316L

> Dimensions disponibles : du DN15 au DN200 mm

> Normes : CE 1935/2004

PN selon le collier modèle 63418
Collier en inox 304

Quantity

CAD
+
CAD
D
NC
663479-21
Joint FKM
15
21,3
45
0,45
CAD
D
NC
663479-26
Joint FKM
20
26,9
45
0,45
CAD
D
NC
663479-33
Joint FKM
25
33,7
45
0,45
CAD
D
NC
663479-42
Joint FKM
32
42,4
45
0,46
CAD
D
NC
663479-48
Joint FKM
40
48,3
45
0,53
CAD
D
NC
663479-60
Joint FKM
50
60,3
59
0,72
CAD
D
NC
663479-76
Joint FKM
65
76,1
59
0,87
CAD
D
NC
663479-88
Joint FKM
80
88,9
59
1,14
CAD
D
NC
663479-114
Joint FKM
100
114,3
59
1,62
CAD
D
NC
663479-139
Joint FKM
125
139,7
59
2,04
CAD
D
NC
663479-168
Joint FKM
150
168,3
59
2,25

D
NC
663479-219
Joint FKM
200
219,1
59
2,65
