PREVAILING TORQUE TYPE HEXAGON NUT WITH PLASTIC INSERT - STAINLESS STEEL A4 - DIN 985 INOX A4 - DIN 985 (Model : 415602)

415602 PREVAILING TORQUE TYPE HEXAGON NUT WITH PLASTIC INSERT - STAINLESS STEEL A4 - DIN 985 INOX A4 - DIN 985

  • Inox A4

Photos

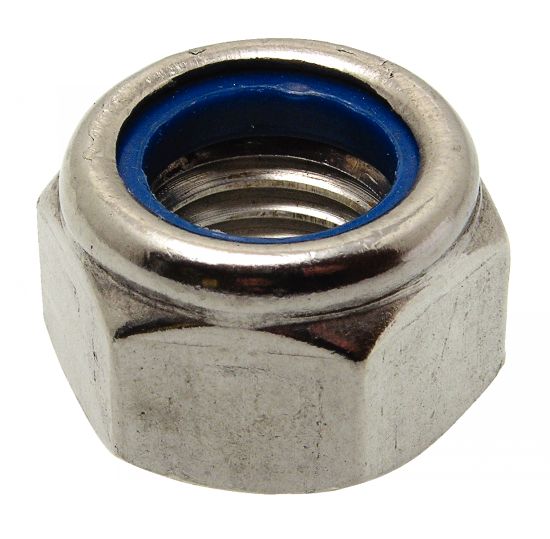

Prevailing torque type hexagon nut with plastic insert - stainless steel a4 - din 985 inox a4 - din 985

Dessins techniques

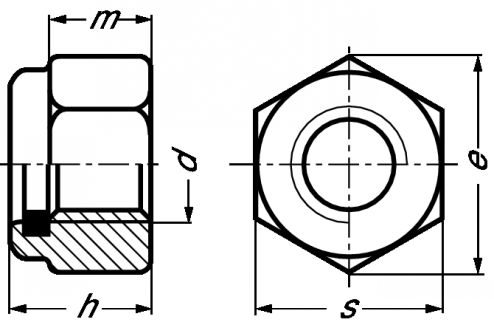

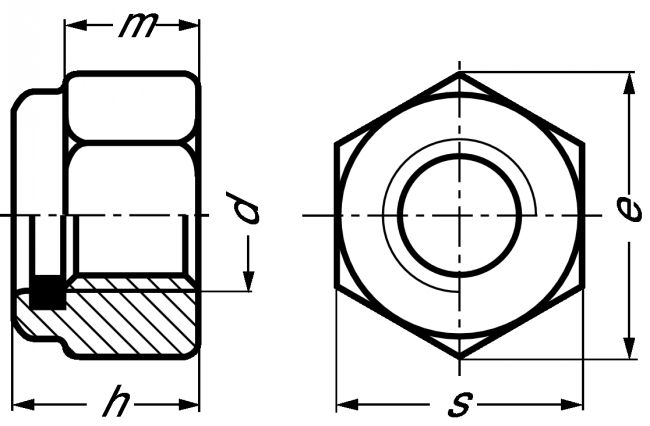

Prevailing torque type hexagon nut with plastic insert - stainless steel a4 - din 985 inox a4 - din 985 (Schema)
EXAMPLE OF ORDER : Référence
415602-2,5

Information

Files

Schéma 0

Quantity

CAD
+
CAD
NC
NC
415602-2,5
M2,5
5,45
2,3
3,5
5
CAD
D
NC
415602-3
M3
6,01
2,4
4
5,5
CAD
D
NC
415602-4
M4
7,66
2,9
5
7
CAD
D
NC
415602-5
M5
8,79
3,2
5
8
CAD
D
NC
415602-6
M6
11,05
4
6
10
CAD
D
NC
415602-8
M8
14,38
5,5
8
13
CAD
D
NC
415602-10
M10
18,9
6,5
10
17
CAD
D
NC
415602-12
M12
21,1
8
12
19
CAD
D
NC
415602-14
M14
24,49
9,5
14
22
CAD
D
NC
415602-16
M16
26,75
10,5
16
24
CAD
D
NC
415602-18
M18
29,56
13
18,5
27
CAD
D
NC
415602-20
M20
32,95
14
20
30
CAD
D
NC
415602-22
M22
35,03
15
22
32
CAD
D
NC
415602-24
M24
39,55
15
24
36
CAD
NC
NC
415602-27
M27
45,2
17
27
41
CAD
NC
NC
415602-30
M30
50,85
19
30
46
