Vanne papillon MACON bout fileté / bride carrée trous ronds

64335 VANNE PAPILLON BOUT FILETÉ / BRIDE CARRÉE TROUS RONDS JOINT SILICONE Inox 316L

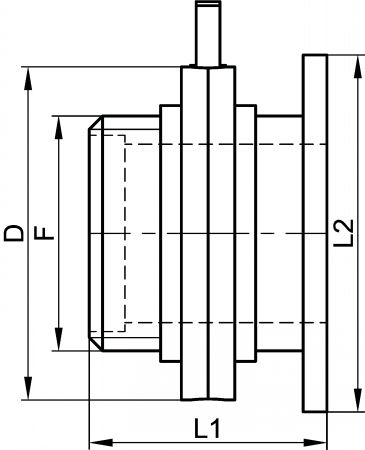

Dessins techniques

Informations

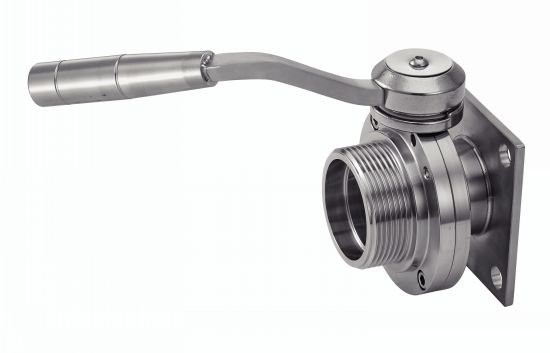

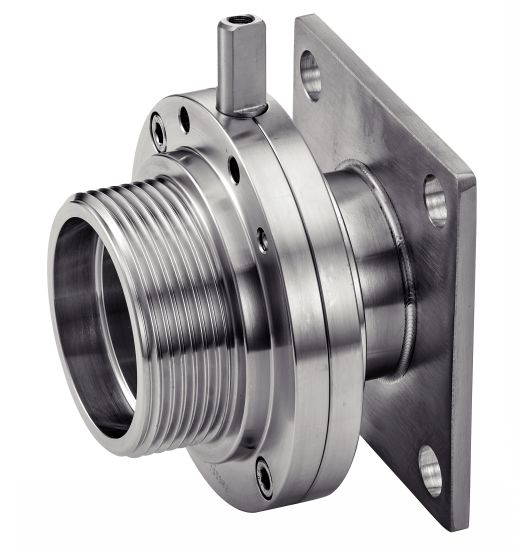

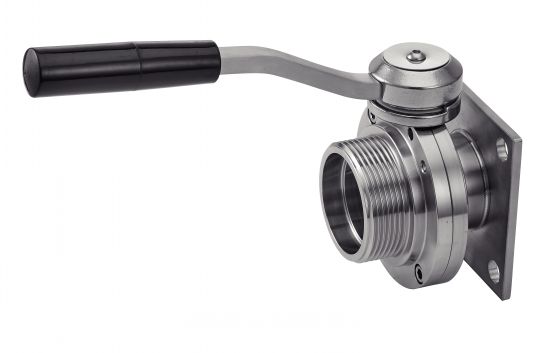

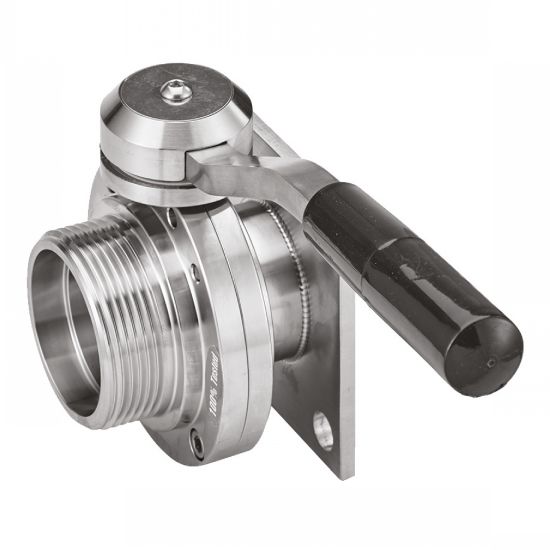

Vanne papillon bout fileté / bride carrée trous ronds avec joint Silicone - Inox 316L

> Dimensions disponibles : du DN40 au DN70 mm

> Normes : CE 1935/2004

PMS (à 20°C) : 10 bar

Température d'utilisation : de -20°C à +150°C (en fonction du joint)
Epaisseur de bride : 6 mm du DN40 au DN50 - 8 mm du DN60 au DN70

Pour une vanne montée en standard avec une poignée plastique (261324-2576); veuillez sélectionner les références qui se terminent par PP
Pour une vanne montée en standard avec une poignée inox (261347-2576); veuillez sélectionner les références qui se terminent par PI

Quantité

CAD
+

D
NC
664335-40PP
Joint Silicone
Plastique
40
90
M55 x 3
74
100
1,60

D
NC
664335-50PP
Joint Silicone
Plastique
50
105
M67 x 3
80
100
1,93

NC
NC
664335-60PP
Joint Silicone
Plastique
60
112
M79 x 3,5
80
120
2,40

D
NC
664335-70PP
Joint Silicone
Plastique
70
125
M90 x 3,5
82
120
2,70

D
NC
664335-40PI
Joint Silicone
Inox
40
90
M55 x 3
74
100
1,60

D
NC
664335-50PI
Joint Silicone
Inox
50
105
M67 x 3
80
100
1,93

NC
NC
664335-60PI
Joint Silicone
Inox
60
112
M79 x 3,5
80
120
2,40

D
NC
664335-70PI
Joint Silicone
Inox
70
125
M90 x 3,5
82
120
2,70
